10.12.2009

Book Release


Studio 2007

5.12.2007

SINKING: city




Expose the nature of the ground condition in Xochimilco. I want to address the sinking city, the manmade nature, and the ever-growing urban conditions that exist in Mexico City, and more specifically, Xochimilco. I hoped to illustrate these contradictory conditions by peeling up and inserting the buildings between the existing ground plane composed of either manmade conditions, or murky waterways. I hoped that the use of layers, and basic forms would not only have a more powerful and sublte effect, but also address some of the rich history of Mexican public works. The resulting spaces situated in separate sites, expose two main conditions: that of constructed nature, and construction sinking into nature.


by Donald Gonzales

Xochimilco Ecological Park



by Joze Zajc

MXDF



by Rosannah Harding

5.11.2007

RECLAIMING landscape




By Jose Brunner

5.09.2007

LAYERING: outside in



This is a manifesto of sorts. It proposes juxtaposing the high-tech with the low-tech, intertwining, weaving, stitching and carving the ideas and ethos of one cultural fabric onto another. A matrix created from combining and superimposing layers of cultural image. The vast canvas of landscape is the natural place to undertake this task. This project seeks to integrate multiple cultures and landscapes by layering from the outside in. This notion of layering, outside in, is also used as the primary methodology for this thesis. It is believed that the layering is the way in which we live now. This is unconscious to most but evidence for this strengthens with each passing day. Layering as a method allows independence, letting each layer work on its own and in concert with the others. It provides a mechanism for fluctuation in programmatic and formal inventions. In both plan and elevation, the layers are evident formally as facades, superimposing on each other within the whole. Programmatically, layering occurs between the boundaries of architecture, entertainment and information. On the landscape, layers are shaped to make space more useful and to provide provocation.

By Fernanda Vuilleumier

5.06.2007

An architectural exhibit by California College of the Arts, Universidad Iberoamericana, University of California Berkeley




post card by Mick Khavari



Mónica E. Félix
Community & Cultural Affairs
Consulate General of Mexico
San Francisco, CA
Ph: (415) 354-172

3.23.2007

The MXDF Review web page is posted at:

http://www-ee.stanford.edu/~jmk/temp/mxdf/flash/index.htm

People using old web browsers that don't support flash can go to:

http://www-ee.stanford.edu/~jmk/temp/mxdf/nonflash/index.htm

3.20.2007

Xochimilco, Mexico Federal District





Team Omar Garzon, Anna Gontar, Yosh Zajc

2.10.2007

Spring 2007 MXDF Studio - CCA, Iberoamericana, UCB Xochimilco Archeological Museum & Ecological Park




Objectives
The MXDF studio aims at exploring how the physical, and conceptual understanding of landscape can enrich current forms of architectural and urban design practice. We will introduce landscape and infrastructure discourses that increasingly impinge on the fields of architecture and urban design today. At the junction of landform, infrastructure, urban design and architecture lies a rich field of possibilities that is increasingly superseding the narrower field of each of the disciplines by themselves.


Site
The studio will work in the Xochimilco area of Mexico City that is well known for its extended series of canals - all that remains of the ancient system of lakes stretching for most of the valley of Anahuac in the middle of which Tenochtitlan the impressive capital of the Aztecs was located. Drained originally by the conquistadors to reproduce the conditions found most commonly in Spain, the lakebed is occupied almost entirely by Mexico city. The loss of the subterranean water has produced an ecological disaster including, the gradual sinking of large parts of the city, loss of habitat, native vegetation and traditional sound agricultural methods to cultivate in the middle of the water called chinampas.
Often referred to, incorrectly, as “floating gardens”, the chinampas were stationary artificial islands that were created by staking out the shallow lake bed and then fencing in the rectangle with wattle. The fenced-off area was then layered with mud, lake sediment, and decaying vegetation, eventually bringing it above the level of the lake. Chinampas were separated by channels wide enough for a canoe to pass
Xochimilco is today a deteriorating area that lives under the constant threat of losing its distinctiveness with the growing relentless advance of the capital city and the pollution of the waters. In spite of the bad situation movies such as Maria Candelaria (1940), directed by Emilio Fernandez Romo have promoted the romantic reputation of the area.




Xochimilco Archeological Site Museum and Ecological Park
The worsening situation has generated a demand to conserve the landscapes and artifacts in Xochimilco while integrating them to the needs of modern society .The creation of Archeological Site Museum and Ecological Park is seen as an important instrument to advance this goal.

Archeology portrays culture as a set of actions made by man to transform his environment; sacred objects, irrigation ditches, fields or defensive moats all have the same cultural significance. Archeology needs to be seen within the context of the man-nature relationship but it has tended instead to conserve and display objects based on their aesthetic values. The MXDF studio will argue that the integration of nature (however artificial) to the economic and social aspects of any given area are relevant to the understanding of culture. The museum program therefore aims at handling archeology in a non-aesthetic way, not as an agglomeration of “objects” of contemplation but instead comprehensively as part of a larger environment.

While you will decide whether to design separate rooms/gardens/ greenhouses to house and or to design a museum as a hybrid based on a combination of strategies, you are asked in all cases to act as curator and collector in addition to being the architect. The museum will be structured around the exhibit of archeological artifacts from Xochimilco that you will research and distribute in space. In addition you should consider lobby spaces, restrooms, workrooms as well as a greenhouse and botanical Garden that will exhibit plants from Xochimilco and the rest of Mexico.

The 76,000 square feet, museum should combine the most advanced structural, material, environmental knowledge to provide a comfortable environment for scholars and visitors. Include support spaces for loading, storage, administration, conservation and photography along with a multipurpose room for both lectures and seated dinners.



Precedents
Kevin Roche’s Oakland Museum of California was designed as a series of low level concrete structures covering a four block area, on three levels, the terrace of each level forming the roof of the one below — a museum with a park on its roof was an innovative solution that became kind of a non-building or a building were landscape and architecture merged eliminating the distinction between the two, to the point where the building lost a presence in the city.

Herzog deMeuron designed DeYoung Museum could arguably be seen as positioning itself ambiguously as an object and a landscape. Both as a form and in its skin patterns the building mimicks and subtly adjust to the surrounding landscape while its floor plan intertwines courtyards and galleries.

Finally the Museo Nacional Antropológico of Mexico by Pedro Ramirez Vázquez gives the outside space an interior character by covering, the courtyard with the enormous concrete umbrella.

Exchange
The studio is going to develop the Archeological Museum program in simultaneity with students from the Universidad Iberoamericana in Mexico City and advanced Studio students from CCA in San Francisco. Mid-review will take place in conjunction with CCA students. Mexican students will come to Berkeley for final reviews. Walter Hood’s studio at the landscape department will also travel to Mexico and we expect further exchanges to happen within internal College context.

Visit
We will be traveling to visit Mexico from the 8th-15 January to research the area, understand social political and environmental circumstances and meet Mexican students, architects and landscape designers. The department will cover the costs of the equivalent of the cheapest return to air -fare (the exact number will depend on the number of students that will join the studio). There might be some additional subsidy for accommodation. An additional trip to Oaxaca.( 5hr beautiful bus ride) to visit the historical town and botanical gardens will depend on the political situation of the area.

We will schedule visits to the Museo Nacional de Antropologia of 1964 designed by Mexican architect Pedro Ramírez Vásquez- some of Barragán’s work, Ciudad Univesitaria and contemporary work in Mexico.

The following are recommended Hotels close to the Zocalo, Mexico city’s main plaza
Hotel Gillow $ $47 for two Isabel la Catolica #17 or Hotel Isabel Isabel La Catolica N° 63 at the corner with Rep. Del Salvador Centro Historico. México, D.F. CP 06000 that has rooms for four people for $51 , tel 5518-1213 for ‘Visas: Passport, or proof of citizenship (such as original birth certificate or naturalization certificate) and photo ID is required by American citizens.  Tourist card is required.  Tourist card valid 3 months for single entry up to 180 days, $20 fee, requires proof of U.S. citizenship, photo ID, and proof of sufficient funds.  Visa not required of U.S. citizens for tourist/transit stay of up to 30 days.  Obtain tourist cards in advance from Consulate, Tourism Office, and most airlines serving Mexico upon arrival.
If you are not an American citizen check whether you need a visa with the Mexican consulate.( web or phone)

Method
The studio will develop field -work, a diary, recording, research exercises and a film during the Mexico visit + research before and after the trip.

1) Collection:
Research the Museum of Anthropology in Mexico City and the Archeological Museum of Xochimilco,( Av. Tenochtitlán and Calle La Planta, Santa Cruz Acalpixca) and books on Xochimilco. Photograph, draw and research twenty pieces that will be the anchors of your museum.

Deliver: a concertino book that you will be able to display with your project the shows and explains the twenty archeological pieces.

2) Material explorations.
Produce a booklet made out of sheets that fit in an 8.5”X11” format
collecting through rubbings and photographs the building/construction textures of Mexico.

3) Diary
Take a notebook on your trip on which you will write a diary of your visit by making notes every day every two hours. Record what you are seeing, exploring, thinking, investigating. Be rigorous, annotate the times of your observations.

4) Compile

Research the subject categories below. Every student is responsible for one;

01. From Teotihuacan to Independence: Mexican history timeline

02. Modern Mexican history (1800-2006)

03. Mexican Avant Garde: art, literature & architecture

04. Urban plans of Mexico City/ History of Cartography

05. Demographics, infrastructure and the environment

06. Barragan, Goeritz and the world

07. Rivera, Kahlo & O’Gorman

08. Zabludovsky, Del Pani, Gonzales de Leon, Cetto

09. Legorreta, Norten y Gomez-Pimienta

10. Kalach & Alvarez, Broid, Rojkind & Ortiz

11. Museo Nacional de Arqueologia, Pedro Ramirez Vasquez,

12. Kevin Roche’s Oakland Museum of California

13. Herzog de Meuron’s DeYoung Museum

14. Latz + Partners, Duisberg-Nord Landscape Park, 1990-2002

15. Smith, Ken The Museum of Modern Art Roof Garden, New York

16. Mosbach Paysagistes, Bourdeaux Botanical Garden, France 2000-02

17. Xochimilco/ Tenochtitlan

Deliver
A 10 slide (or more) Power Point presentation on your category to be shown. We will also watch one of the films.. Photocopy reductions of those slides and accompanying text to be collated and bound into a collective MXDF guidebook. The completed guide (12 copies)

5) Watch
Amores Perros, = Love’s a bitch / Studio Home Entertainment ; Altavista Films presenta una producción de Zeta Film y Altavista Films ; a film by Alejandro González Iñárritu ; directed and produced by Alejandro González Iñárritu ; written by Guillermo Arriaga Jordán Lion’s Gate Home Entertainment ; Marina Del Rey, CA : Distributed by Studio Home Entertainment, c2001
Media Ctr. DVD 1132. Available on line.

The Walls of Mexico, [videorecording] : art and architecture / a film by Guido de Bruyn ; [produced by BRTN Cultural Department].a film by Guido de Bruyn, Princeton, N.J. : Films for the Humanities & Sciences, c1996. U.C. Santa Barbara Arts Lib NA759.B36 W35 1996

Maria Candelaria [videorecording] = Xochimilco / produced by Armando Espinoso ; directed by Emilio Fernandez1943 ; written by Emilio Fernandez and Mauricio Magdaleno. Media Ctr VIDEO/C 999:138

6) Film (small group project)

MXDF Film Primer
The creation of a film is very similar to the making of a complex piece of architecture. The
viewer or participant in both cases is brought into a knowledge of a new world which is built
sequentially over time from the first glimpse and onwards over the duration of the experience.
The author of this strange new world slowly reveals the rules and establishes the sense of the
place. This is the same for the film maker, from using the
“Establishing Shot” to the architects “Promenade Architecturale”; In both, the author will create
tensions, establish conflicts, and frustrate the protagonist, all in an effort to heighten the senses
and stimulate the emotions of the viewer against the context of this world and its “rules”. In both
the perceiver is led through a moving Choreography of “scenes’ or “spaces” towards revealing
the work of art that is the final “feature film” or “building”.

Thematic Structure
In thinking about film editing it is advisable to have a plan – to make rules about the film and
how you want it to look and unfold in time - and then stick to them – whatever they are. A good
place at the start is to consider thematic overarching structure. This can help you to
develop an editorial bias towards the extensive and very rich material and footage that you record

Time: Consider pacing, rhythm, smooth, choppy, chronology, origins, juxtaposition,
inversion, suspension, contraction and expansion, elongation or freeze –
passage and transitions, narrative overlaps and simultaneity, historic time,
memory and biological vs. technology, linear, circular, repetitive, ritualistic, …

Layers: Consider social stratifications, economic, modernism, classical, formal, colors
affinity and contrasts, transparencies, boundaries, borders and frame, cropping,
and close vs. far space, deep and flat space, active and passive, calm vs.
frenetic. Consider Spatial, image depth, thematic, motif, density, time and placelessness,
intricacy, transparencies, superimposition, social structure, authoritative, landscape, ecology , water,power, poverty, information, data, cultural landscapes, civic, historical
and palimpsest structures, streets, light and shadow, color, narrative overlaps
and simultaneity, multiple levels of understanding, degrees of complexity,
collapsed vs. pulled apart. As the film unfolds, and you build your “world”, make these relationships and compositional decisions manifest in all you do. Concentrate on one thing and do it well – work together to be consistent and true to your world as you are describing it - that is the

Schedule: (see attached sheet for details)
SPRING SEMESTER BEGINS Tuesday, January 09, 2007
Academic and Administrative Holiday
Instruction Begins Tuesday, January 16, 2007
Academic and Administrative Holiday Monday, February 19, 2007
Spring Recess Monday, March 26, 2007 -- Friday, March 30, 2007
Cal Day Saturday, April 21, 2007
Instruction Ends Tuesday, May 08, 2007
Final Examinations Friday, May 11, 2007 -- Friday, May 18, 2007
SPRING SEMESTER ENDS Friday, May 18, 2007

Bibliography:
Aldrete-Hass, Jose Antonio. “The Search for roots in Mexican modernism” in Latin American Architecture 1929-1960, Contemporary Reflections- Ed. by Carlos Brillembourg, Monacelli Press, New York 2004. EnvDesign NA702.5 .L38 2004

Atlas de la Ciudad de México, Gustavo Garza y Programa de Intercambio Científico (comps.), México, DDF/El colegio de México, 1987. EnvDesign G1549.M6 A84 1987

A .V. Monografías de Arquitectura y Vivienda, número 13. Madrid, 1988.( Spanish and English) EnvDesign NA7385 .A2

Arquitectura / México, números 1 al 119. México, 1938-1980.

Architecture of Ricardo Legorreta, The. Wayne Attoe (ed.), commentary by de Ricardo Legorreta Austin, University of Texas Press, 1990. EnvDesign NA759.L44 A87 1990

Anda, Enrique X. Evolución de la Arquitectura en México . México, Panorama Editorial, 1987. México : GG, c1995. Bancroft NA750 .S55 1987

Latin America in its Architecture. Roberto Segre (coord.) New York : Holmes & Meier, c1981. EnvDesign NA702 .A5413 1981

Builders in the Sun; Five Mexican Architects, New York : Architectural Book Pub. Co., 1967 EnvDesign NA758 .S6

Bamford Smith, Clive, Builders in the Sun, Five Mexican Architects, preface by José Villagrán García, Nueva York, Architectural Books, 1967. EnvDesign NA758 .S6

Barragan, Luis “ Gardens for Environment- Jardines del Pedregal” AIA Journal of the American Institute of Architects 17 (April 1952) 167-72

Beacham Hans, The Architecture of Mexico, Yesterday and Today, introductin by Mathias Goeritz, Nueva York, Architectural Books, 1969. EnvDesign NA750 .B4

Born Esther, The New Architecture in Mexico, texto by Justino Fernández, Nueva York, The Architectural Record, 1937.Environ Dsgn
NA755.B6

Bulrich Francisco, New Directions in Latin American Architecture, New York: George Brazillier, 1990. EnvDesign NA702 .B77

Burian, Edward R. Modernity and the Architecture of Mexico. Austin, TX : University of Texas Press, 1997. EnvDesign NA755 .M655 1997.

Canclini, Néstor García. Hybrid Cultures : Strategies for Entering and Leaving Modernity /  ; with a new introduction ; foreword by Renato Rosaldo ; translated by Christopher L. Chiappari and Silvia L. López Minneapolis : University of Minnesota Press, c2005 U.C Davis F1414.2 .G36513 2005

Carranza, Luis. “Choping to the Electric Chair!: The Mexican Avant-Garde and the Revolutionised City” in Transculturation: Cities, Spaces and Architectures in Latin America- Ed. by Felipe Hernandez, Mark Millington and Iain Borden, Rodopi, New York 2005. Main NA2543.S6 T73 2005, Environ Dsgn NA2543.S6.T73 2005


Comas, Carlos Eduardo Dias: “Latin American Memorandum: the Architecturally Exemplary Nature of the Marginal.” in 2G Arquitectura Latinoamericana, Una Nueva Generacion, Latin American Architecture, a New Generation, N8, 1998.

Curtis, William J. R. “Towards an Authentic Regionalism.” In MIMAR 19: Architecture in Development. Singapore: Concept Media Ltd. ( an/March 1986) p.24 http://archnet.org/library/documents/one-document.tcl?document_id=4558

Damaz Paul, Art in Latin American Architecture, preface by Oscar Niemeyer, Nueva York, Reinhold Publishing, 1963.

Eggener Keith L. Place Resistance: A critique of Critical Regionalism” in Journal Architectural Education (May 2002 ) 228-237.

Frazer, Valerie. Building the New World : Studies in the Modern Architecture of Latin America, 1930-1960. New York : Verso, 2000. EnvDesign NA913 .F73 1990

Gallo, Rubén. Mexican Modernity : the Avant-Garde and the Technological Revolution Cambridge, Mass.: MIT Press, 2005. Main NX180.T4 G35 2005

Gallo,Ruben Ed. The Mexico City Reader. Translate by Lorna Scott Fox and Ruben Gallo, University of Wisconsin Press, Madison 2004. Main F1386 .M654 2004.

Guía de 4,000 años de Arquitectura en México : Jornadas Internacionales de Arquitectura, Zacatenco, octubre ‘63. First ed. published in 1956 under title: 4000 Años de Arquitectura Mexicana. SAM / Libreros Unidos Mexicanos, 1956(Spanish and English. )Env. Design NA750 .S6 1963

Lejeune, Jean Francois. “Dreams of Order: Utopia, Cruelty and Modernity in Cruelty and Utopia , Cities and Landscapes of Latin America. New York: Princeton Architectural Press (2005)

EnvDesign NA702 .C7813 2005

Magnago Lampugnani, Vittorio. ”Urban Design and Speculation” in Federica Zanco.edited Luis Barragán : The Quiet Revolution. Switzerland: Barragan Foundation(2001). EnvDesign NA759.B36 L863 2001
Mendez Vigata, Antonio E. “ Politics and Architectural Language. Post_Revolutionary Regimes in Mexico and their Influence on Mexican Public Architecture, 1920-1952.” in Burian, E. Modernity and the Architecture of Mexico. Austin, Tx.: University of Texas Press(1997)83, Environ Dsgn NA755.M655 1997
Myers I.E.; in cooperation with the National Institute of Fine Arts of Mexico. Mexico’s Modern Architecture. New York : Architectural Book Pub. Co., 1952 EnvDesign NA755 .M9

Opher, /Philip with Xavier Sanchez Valladares ; México City: a Guide to Recent Architecture. London : Ellipsis, c2000 UC San Diego Art&Arch NA757.M4 O64 2000

Paz, Octavio. The Labyrinth of Solitude : Life and Thought in Mexico. New York : Grove Press, 1961. Anthropol. F1210 .P395
Praxis ISSUE 2: Mexico City : Projects from the Megacity. EnvDesign NA1 .P678
Reese, Carol McMichael . “ The Urban Development of Mexico City, 1850-1930” in Planning Latin America’s Capital Cities, 1850-1950 (Arturo Almandoz, ed., Routledge,
EnvDesign HT169.L3 P53 2002
Ramírez Vázquez, Pedro. Por que se discute la Arquitectura en México. EnvDesign NA750 .R36 1979a
Thomas, Helen. “Colonising the Land: Heimat and the Constructed Landscapes of Mexico’s Ciudad Universitaria (1943-1953)” in Transculturation: Cities, Spaces and Architectures in Latin America- Ed. by Felipe Hernandez, Mark Millington and Iain Borden, Rodopi, New York 2005 Main NA2543.S6 T73 2005
Treib, Marc “ a setting for Solitude: the Landscape of Luis Barragan. “in Federica Zanco.edited Luis Barragán : The Quiet Revolution. Switzerland: Barragan Foundation(2001).
NA759.B36 L863 2001
Selected Bibliography on Xochimilco.
Xochimilco. México, D.F. : Artes de México, 1993.Main N7 .A76 ser.2 no. 20
Terrones López, María Eugenia (coordinadora) A la Orilla del Agua : política, urbanización y medio ambiente : historia de Xochimilco en el siglo XX /  México, D.F. : Gobierno del Distrito Federal, Delegación Xochimilco : Instituto Mora, 2004. EnvDesign F1386.4.X63 A2 2004
Elizondo, Juan Gil. Ecological rescue project, Xochimilco EnvDesign F1386.4.X63 E42 1997
Xochimilco arqueológico / directora del proyecto, Mari Carmen Serra Puche
Bancroft pf F1219.1.P17 X631 1994.

Xochimilco / producer, Hamilton Wright. Movie UCLA FilmTV M59607

2.07.2007

2.02.2007

Xochimilco, Mexico City

He knew that temple was the place that his invincible purpose required.....
he knew that immediate obligation was the dream.

-Jorge Luis Borges, "The Circular Ruins"

1.31.2007

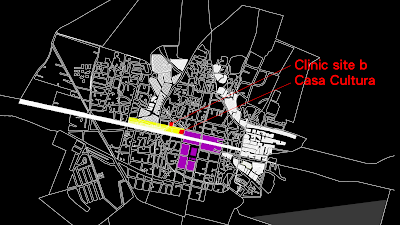

urban master plan xochimilco











































by
Jonathan Manzo
Fernanda Vuilleumier
